How to Build Floating Shelves: 3 Ways (From Beginner to Advanced)

So you want to build your own floating shelves? Awesome. In this guide, I’ll walk you through three ways to do it—beginner, intermediate, and advanced. We’ll talk cost, strength, tools, and of course, how to avoid ending up on a DIY fail compilation.

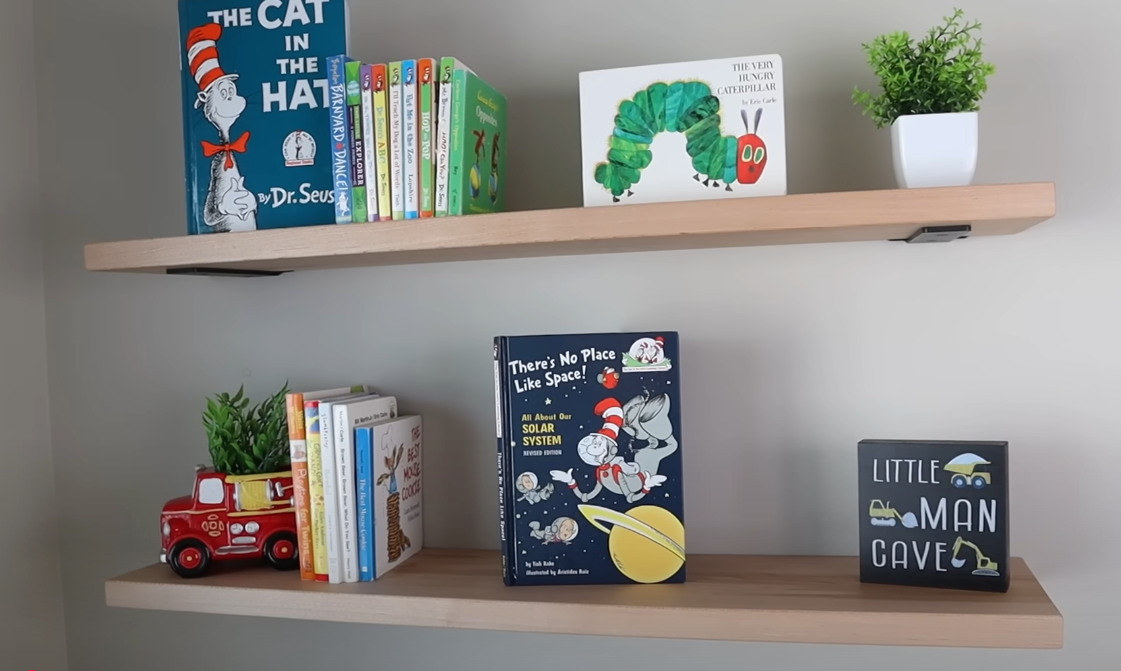

Beginner Floating Shelf (aka: The Easy Pinterest One)

Let’s kick it off with the "beginner" version. I’m putting “floating” in quotes here because technically, the hardware is visible—but don’t worry, no one’s calling the woodworking police.

What You’ll Need:

A board (I used soft maple, ~1.5" thick—you could use a 2x10 from the big box store)
Brackets (choose your orientation: base plate up or down)
Drywall anchors and screws
Optional: miter saw, circular saw, karate skills

Steps:

Bracket Positioning: I went with base plate up because I like the look. Try to get one screw of each bracket into a stud, use drywall anchors for the rest.
Visualize with Tape: I used green painter’s tape to map shelf placement—makes it easy to mark without drawing on the wall.
Make It Flush (Optional): If your bracket leaves a gap between the shelf and wall (base plate up), you can notch out the back of the board. Totally optional, but it’ll bug you forever if you don’t.
Finishing: Sand (120 > 180 grit), then apply a finish of your choice.

Load Test:

Each bracket claims to support 150 lbs. Realistically, it depends on your wall anchors. I stood on one—held up just fine. I’d trust 50–75 lbs per shelf, no problem.

Verdict: Easy, fast, affordable. Looks great with minimal tools. Perfect for upping your Pinterest decor rating.

Intermediate Floating Shelf (with Hidden Lag Screws)

Now we’re stepping it up. My daughter demanded shelves of her own, and who am I to deny her Pinterest-worthy storage?

Why This Rocks:

Traditional hidden hardware starts at $50–$100/shelf. This method? Less than $8 per shelf using lag screws.

Warning:

If you don’t know what’s behind your drywall, don’t just start drilling! I have electrical and possibly plumbing in my wall, so I cut away the drywall first to check. Pro tip: no shelf is worth flooding your house. watch the detailed version of this installation here

Process:

Expose the Studs: Cut out drywall just enough to see the sides of studs and check for wiring.
Drill Pilot Holes: Use a dowel jig to keep your drill perfectly perpendicular to the wall.
Install Lag Screws: Sink them in at 90 degrees, I marked 3" in from the wall and hacksawed the screw heads at that depth.
Mark Your Shelf: Shift the shelf board ¼" to offset for screw thickness, then mark your drill locations using a square.
Drill Mounting Holes: Use a Forstner or overdrive bit. Thank your future self for finally buying your own set.
Install & Finish: Slide the shelf over the screws and finish however you like.

Bonus Tip:

Don’t wire LEDs backwards. Ask me how I know.

Verdict: Stronger, cleaner, and way cheaper than store-bought hardware. Ideal for intermediate DIYers with some guts and a good sense of humor.

Advanced Shelf: Miter-Folded Plywood Brilliance

This is the pro-level floating shelf. Full-on mitered plywood, hidden internal frames, and that sexy continuous wood grain look. Follow along the video instructions here

Materials:

¾" plywood (nice stuff—mine was pricey)
Internal frame material
Wood glue, painter’s tape
Track saw, table saw, router
Optional: LED lighting

Build Overview:

Cut Your Parts: Top, front, and bottom—all from the same sheet to keep the grain consistent.
Miter the Edges: Set your blade slightly past 45° to get tight joints.
Build Internal Frame: This is what your shelf will slide over. Size it to match the interior of your miter-folded piece.
Glue-Up: Use painter’s tape to clamp the miters. Glue generously—plywood sucks it up. Burnish edges with a wide screwdriver to close tiny gaps.
Install Frame: Level, attach to studs, shim if needed. No drywall removal this time, thanks to side studs.
Customize Fit: Walls are never square. I used a stair tread gauge (thank you Spencer from Insider Carpentry) to scribe both wall angles. Then cut to fit perfectly.
Add LEDs: Because apparently YouTube demands it.

Oops Count: High

Wired the lights backwards
Cut the drywall twice
Measured my stretchers wrong
But hey, that’s DIY life.

Verdict: Costs more (about $165 per shelf in materials), but the result? Stunning. Strong, custom, and pro-tier impressive.

Final Thoughts

Whether you’re just getting started or you’re deep in the miter-fold rabbit hole, floating shelves are an awesome DIY project. They can be simple or they can be showstoppers—it’s all up to you.

Beginner? Stick with brackets.
Intermediate? Try hidden hardware.
Advanced? Go full-on miter-folded plywood with lighting and a flawless fit.

Just remember:

Know your wall before drilling
Measure twice, cut once (then cut again anyway)
Test your electronics BEFORE the final install

Now if you’ll excuse me, I’m off to build custom cabinets and try to not mess those up too.
